Product Category

Anti-static Rubber Mat / esd products cleanroom esd table mat

Quantity:

Share this:

Inquire Add To Basket

Brand: Jingya
Code: JY-613
Place of Origin: Jiangsu, China (Mainland)
Model Number: JY-613
Feature: antistatic
Brand Name: Jingya
Usage: Cleanroom Protection

Product Description

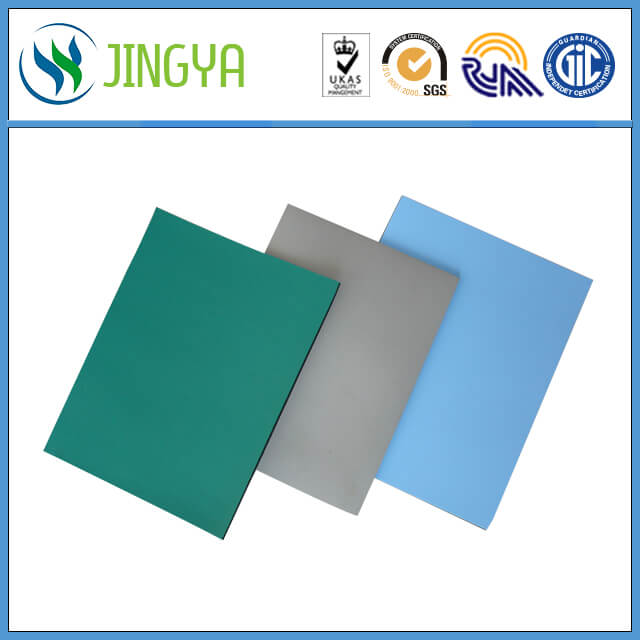

Anti-static table mat is mainly made of anti-static material and synthetic rubber. The surface layer is a 0.5mm thick static-dissipative layer. The bottom layer is a 1.5mm black conductive layer. Generally, 2mm thick double-layer structure is used. The available colors include green, gray, blue, black and etc.Anti-staitc mat is designed to harmlessly drain charges from presonnel, esd boxes, components and etc. It is lie flat-will not cart and not affected by humidity and superior resistance to abrasion, chemicals and heart resistant, easy to clean and maintain.

Material	PVC+RUBBER
Thickness	2mm
Size（L*W）	10m1.2m,10m1.0m
Color	Green/Black/Blue/Gray
Surface antistatic	Anti-skid
Resistivity of surface layer	106~109Ω
Resusticity of bottom layer	103~105Ω
Time for static dissipation	<0.1s

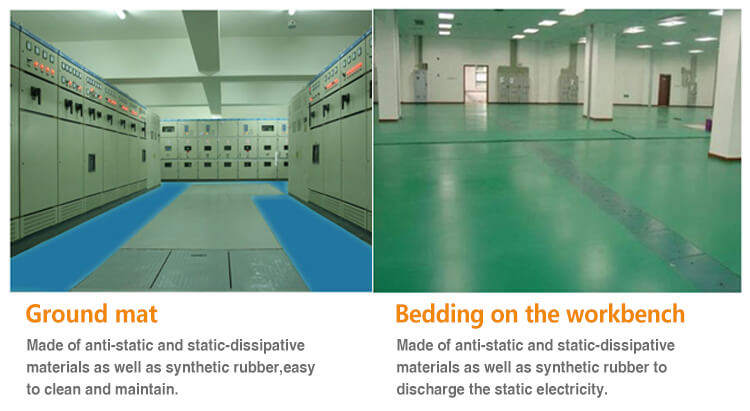

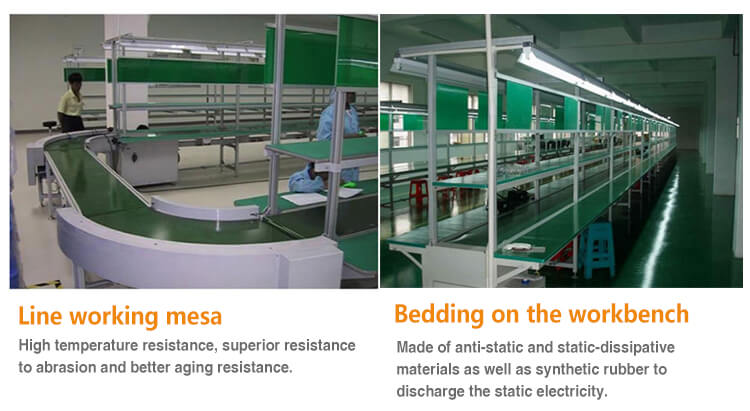

Anti-static rubber mat or ground mat should be laid out in the workshops and advanced laboratories for microelectronic industries such as electronic semi-conduct devices, electronic computers, electronic communication equipment and integrated circuits etc.
