Desktop antistatic ESD Ionizing air blower

Desktop antistatic ESD Ionizing air blower

Quantity:

Share this:

Inquire Add To Basket

Brand: Jingya
Code: JY-610
Model Number: JY-610
Type: Electric Blower
Brand Name: Jingya

Product Description

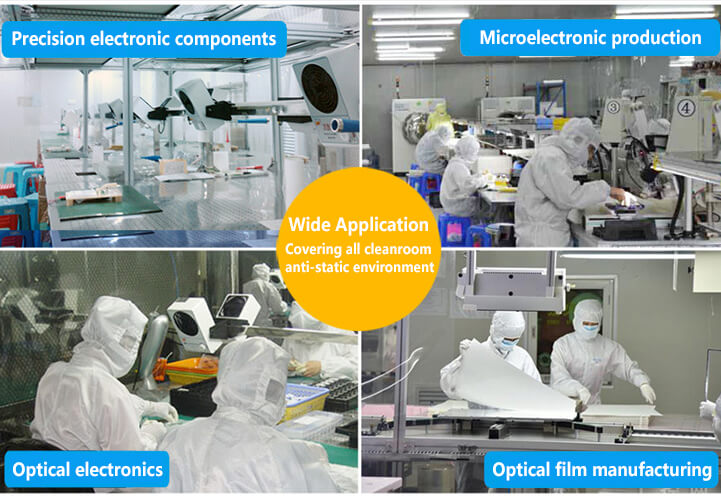

Desktop lonizing Blower can eliminate the static charge of the areas not easy to contract.Is characterized by rapid elimination of static electricity, the ion wind cover a large areas and equipped with plasma needle cleaners, light ions.It can be continuously adjustable speed, built-in fans and high-voltage power supply, ion balance voltage is 0V ± 10V. Installation Method: desktop, hanging style. Is a precision electronic products, electronic assembly, pharmaceutical manufacturing assembly lines, printing, packaging and molding products ideal for small static eliminator.

Features:

1. Small, light weight and portable

2. Rapidly neutralizes static charges

3. Covers an extended distance with ionized air

4. Variable speed fan with wide range of air flow

5. Ion wattage heater for operator comfort

6. Inherently balanced ion output

7. Patented ion emitter cleaner

8. Ionization indicator lamp

9. Durable, electrically grounded metal enclosure

Specifications:

Operating Voltage	110V/60Hz or 220V/50Hz
Current Consumption	0.25A or 0.12A
Operating Temperature	0-50
Air Coverage	40cm-60cm
Air Volume	45~110CFM
Ion Balance	0V-10V
Size	90mm(L) 170mm(W) 260mm(H)
Weight	3kg

Test Results:

Decay Test Conditions
Operating Voltage :110V/220V Testing Voltage:1KV to 100V Temperature:22
Distance		300mm	600mm	900mm
Decay time	Positive	1.2s	2.5s	4.0s
Decay time	Nefative	1.2s	2.4s	3.9s
